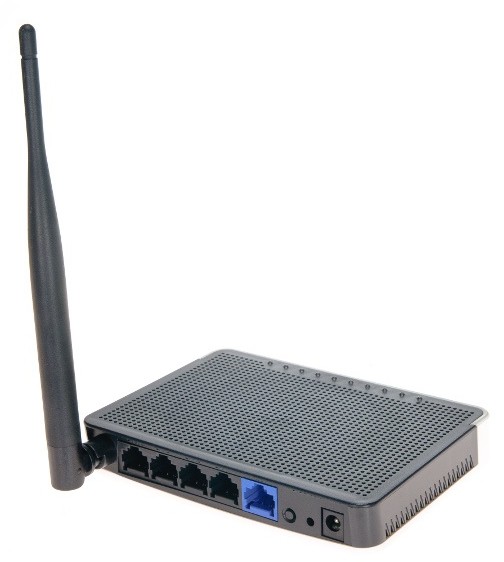

Netis WF-2411

Wireless

Standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Signal Rate

Up to 150Mbps

Frequency Range

2.4-2.4835GHz

Transmit Power

20dBm(MAX)

Data Transfer Rate

802.11n:
40MHz(150Mbps, 135Mbps, 120Mbps, 90Mbps, 60Mbps, 45Mbps, 30Mbps, 15Mbps)
20MHz (72Mbps, 65Mbps, 57Mbps, 43Mbps, 28Mbps, 21Mbps, 14Mbps, 7Mbps)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Mode

AP, WDS, AP+WDS, Repeater, Client, Multiple AP

Wireless Security

64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering

Hardware

Standard

IEEE 802.3 10Base-T, IEEE 802.3u 100Base- TX

Interface

1 * 10/100M Auto MDI/MDIX RJ45 WAN port
4 * 10/100M Auto MDI/MDIX RJ45 LAN port

LED Indicator

SYS,WPS, WAN, LAN1-LAN4

Button

Default, WPS

Antenna

1 * external 5dBi antenna

Power Supply

DC 9V/500mA(Output)

Dimensions (L x W x H )

133 x 99 x 27 mm

Weight

149 g

Software

WAN Type

DHCP(Dynamic IP), PPPoE, Static IP, WISP

Port Forwarding

Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port

QoS

WMM, Bandwidth Control

Access Control

IP/MAC/Domain filtering

VPN Pass-through

PPTP, L2TP, IPSEC

Others

DDNS, Static Routing, WOL, Remote Management, Firmware upgrade

Others

Certification

FCC, CE, KC

Environment

Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package

1 * WF2411
1 * Power Adapter
1 * Ethernet Cable
1 * Quick installation Guide
